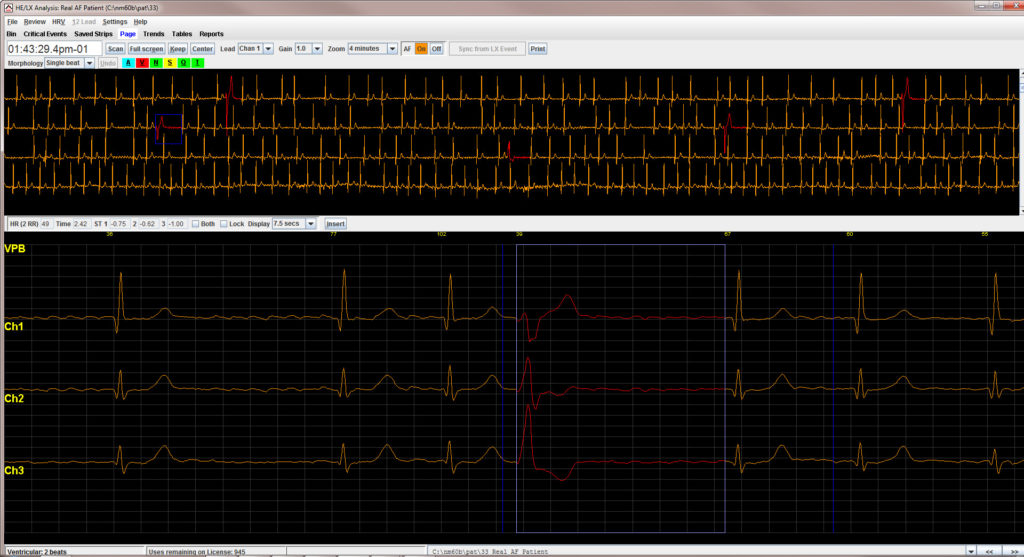

HE/LX® Analysis

The HE/LX Analysis Software comes in four levels of functionality: Basic, Enhanced, Enhanced Plus, and Pro. The software and efficient file structure on which it is built offer the doctor’s office, the scanning service, or the most demanding cardiac research or clinical applications, the fastest and most user-friendly environment in which to reduce megabits of data to the critical reports necessary in today’s world. The software supports networking and remote satellite office transmission.

A number of proprietary features make this software unique; the most productive and highly regarded in clinical and diagnostic communities.

Software Performance and Specifications:

   Arrhythmia Detection:

  • Ventricular Premature Beats (VPBs)
  • Supraventricular Premature Beats (SVPBs)

   Maximum time analyzed:

  • 14 days

   Presentation of data:

  • Standard 25 mm/s for 3-lead and 12-lead recordings
  • 50 mm/s available for 12-lead recordings
  • All 12-lead data displayed for 12-lead recordings
  • For oximetry recordings, SpO2 replaces 3rd channel
  • Calibration indication can be provided in reports

   ST Segment slope:

  • Positive or negative slope indicated based on manual setting of cursors by trained operator

   LAN Capability:

  • Allows multiple users to access a common database of patient data without conflict.

   Pacemaker detection:

  • Displayed and annotated for the operator


  • When available, displayed by software
  • When at least 4 hours of noise free data is provided will calculate AHI (Apnea- hypopnea index) value.


  • Capability of labeling all arrhythmias with the operators input
  • Modular with ability for operator to select modules to be included
  • All reportable values and labels are editable by the operator
  • Ability to remove and/or add sample ECG strips

Four user levels: Basic, Enhanced, Enhanced Plus and Pro.

Import data from non-NEMon Holters: The best Holter analysis software from the company that started it all. The industry standard HE/LX (helix) Analysis software has a unique interface allows rapid integration of new recorder types.

Up to 14-day Holter studies:  Never miss a beat.  Let the software sort and categorize thousands of beats. Consolidate or split the data from multi-day studies along your preferred boundaries. Trends, averages, totals, tables, etc., automatically adjusted.

User-customized criteria and reports: Quickly create specific reports and scanning critera for specific clients with configuration management tools. Customized reports match your needs, e.g., contact information, diagnostic terms, morphological terms, key phrases, logos, and more.

Flexible deployment with LAN/WAN support and multi-user db management: Supports local office networks (LANs) and remote, satellite offices (WAN transmit/receive).

Multiple License Options: Supports perpetual, timed, multi-user and PPU (pay-per-use) licensing options.

LX Remote and LX Event Interfaces: Fastest and most accurate time to report

Natural, intuitive editing modes speed report generation
